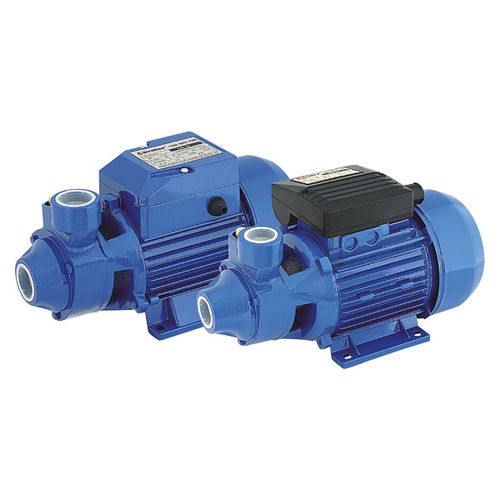

Peripheral pump QB series
for clear waterfor chemicalswith electric motor

Peripheral pump - QB series - Fujian Mindong Electric Co., Ltd. - for clear water / for chemicals / with electric motor
Peripheral pump - QB series - Fujian Mindong Electric Co., Ltd. - for clear water / for chemicals / with electric motor
Add to favorites
Compare this product


Characteristics

Technology
peripheral
Fluid
for clear water, for chemicals
Operation
with electric motor
Mobility
stationary
Domain
for home automation
Applications
booster, washing
Flow

Min.: 0 l/min
(0 us gal/min)

Max.: 46 l/min
(12.15191 us gal/min)

Pressure

10 bar
(145.038 psi)

Head

Min.: 2 m
(6'06" )

Max.: 65 m
(213'03" )

Power

Min.: 0.37 kW
(0.5 hp)

Max.: 1.1 kW
(1.5 hp)

Fluid temperature

40 °C, 80 °C
(104 °F, 176 °F)

Length

265 mm, 305 mm
(10 in, 12 in)

Width

118 mm, 134 mm
(4.65 in, 5.28 in)

Height

138 mm, 150 mm
(5.43 in, 5.91 in)

Weight

5.5 kg, 9 kg, 10.5 kg
(12.13 lb, 19.84 lb, 23.15 lb)

Description

The QB series are peripheral pumps, with peripheral impeller containing numerous radial blades in its edge, suitable for pumping clean water and chemically non-aggressive liquid. They have relatively simple construction and are very economical, reliable and safe. It is widely used for household and domestic applications such as water supply from wells and pools, pressure boosting, garden sprinkling, washing booths etc. Pumps should be installed in a covered area, protected
