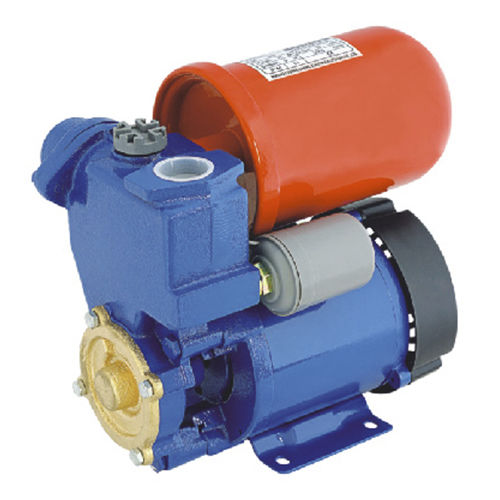

Centrifugal pump AUTOPS 126
waterwith electric motorself-priming

Centrifugal pump - AUTOPS 126 - Fujian Mindong Electric Co., Ltd. - water / with electric motor / self-priming
Centrifugal pump - AUTOPS 126 - Fujian Mindong Electric Co., Ltd. - water / with electric motor / self-priming
Add to favorites
Compare this product


Characteristics

Technology
centrifugal
Fluid
water
Operation
with electric motor
Priming
self-priming
Mobility
stationary
Domain
industrial
Applications
distribution
Other characteristics
automatic
Flow

Min.: 0 m³/h
(0 ft³/h)

Max.: 2.1 m³/h
(74.1608 ft³/h)

Pressure

10 bar
(145.038 psi)

Head

Min.: 2 m
(6'06" )

Max.: 30 m
(98'05" )

Power

0.22 kW, 0.45 kW
(0.3 hp, 0.61 hp)

Fluid temperature

40 °C, 60 °C
(104 °F, 140 °F)

Length

267 mm
(11 in)

Width

254.4 mm
(10.02 in)

Height

177 mm
(6.97 in)

Weight

9.8 kg
(21.61 lb)

Description

The Automatic booster system consists of a water pump, an airtight pressure tank, and a pressure switch. The specially designed structure make it better appearance and performance. The pressure tank with a non-toxic rubber membrane, or called pressure vessel, has been pre-filled with air pressure of about 0.12 Mpa before leaving the factory. These systems give suitable mains water pressure as required by modern domestic appliances and industrial applications, and will ensure enough water to supply all user outlets. Pumps should be installed in a covered area, protected against the weather.
