Peripheral pump LQ series
waterwith electric motorstationary

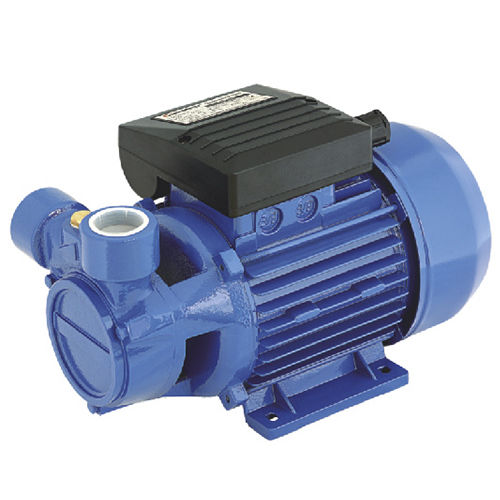

Peripheral pump - LQ series - Fujian Mindong Electric Co., Ltd. - water / with electric motor / stationary
Peripheral pump - LQ series - Fujian Mindong Electric Co., Ltd. - water / with electric motor / stationary
Add to favorites
Compare this product


Characteristics

Technology
peripheral
Fluid
water
Operation
with electric motor
Mobility
stationary
Domain
industrial
Applications
washing
Protection level
IP54
Other characteristics
radial
Flow

Max.: 65 m³/h
(2,295.45334 ft³/h)

Min.: 2 m³/h
(70.62933 ft³/h)

Pressure

10 bar
(145.038 psi)

Power

Max.: 1.1 kW
(1.5 hp)

Min.: 0.37 kW
(0.5 hp)

Fluid temperature

40 °C, 80 °C
(104 °F, 176 °F)

Length

240 mm, 280 mm
(9 in, 11 in)

Width

118 mm, 157 mm
(4.65 in, 6.18 in)

Height

152 mm, 175 mm
(5.98 in, 6.89 in)

Weight

6 kg, 10 kg, 10.8 kg
(13.23 lb, 22.05 lb, 23.81 lb)

Description

The LQ series are peripheral pumps, with peripheral impeller containing numerous radial blades in its edge, suitable for pumping clean water and chemically non-aggressive liquid. They have relatively simple construction and are very economical, reliable and safe. It is widely used for household and domestic applications such as water supply from wells and pools, pressure boosting, garden sprinkling, washing booths etc. Pumps should be installed in a covered area, protected against the weather.
