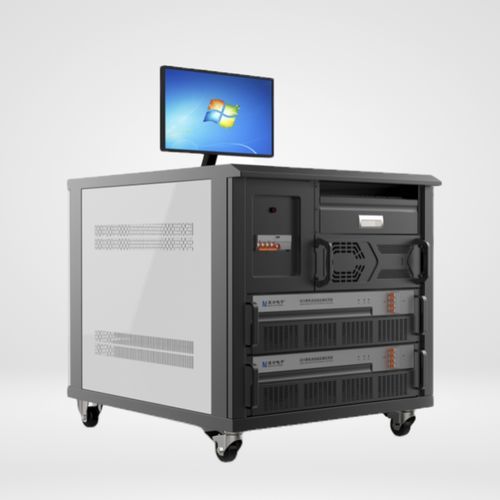

Test system for automotive applications BAT-NEHP-100100150-V001

It is an all-encompassing testing system primarily utilized for assessing the fundamental operational and protective qualities of power battery packs, such as lithium-ion battery packs for electric bicycles, power tools, and energy storage battery packs. It is employed for examining products of lithium-ion battery packs below 100V, and the apparatus can supply a maximum charging voltage of 100V, maximum charging current of 100A, maximum discharging current of 150A, and maximum output power of 7.2K. suitable for charging or discharging from a variety of ports, with either a common positive or negative program. offers a comprehensive range of test items and a multi-segment current protection function test, enabling precise measurement of the protection time. Testing and maintenance can be conveniently conducted using the host computer software operation. Test results can be stored in the database, which is beneficial for product quality control, traceability, and anomaly analysis. The Log Function is a comprehensive record of the system's operational history. This equipment offers the capability to export data in Excel format.
