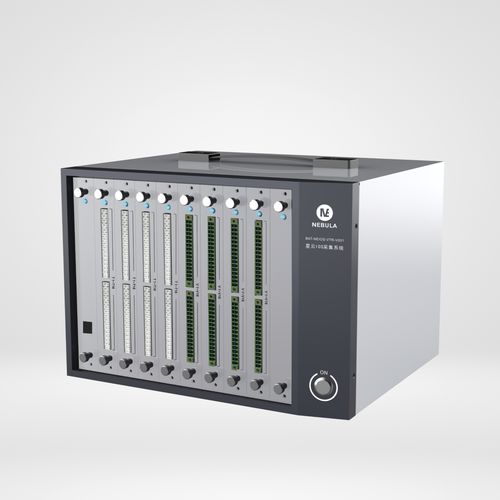

Temperature data acquisition system BAT-NEIOS-0564V64TR-V001

voltage16-channelbenchtop

This is the latest generation of Nebula’s multi-functional, integrated data acquisition system, which leverages a high-speed data communication bus to acquire and control multiple signals. Customers can utilize the monitored voltage and temperature values to analyze the battery pack or simulate test conditions and receive alerts during system testing. This system is suitable for automotive battery modules, energy storage battery modules, electric bicycle Li-ion batteries, power tool battery packs, medical devices, and other Li-ion battery pack products. Features High accuracy: Voltage acquisition accuracy is ±0.02% F.S., temperature acquisition accuracy is ±1°C Fast response: The device adopts CAN and Ethernet communication mode, which can ensure the stability and real-time performance of data collection Excellent experience: The test line and the device circuit do isolation processing, can support series core voltage measurement and directly attached to the pole ear temperature measurement; Single-point modular control: Each channel is independent of each other, and the production efficiency is high. Each module can control, measure and collect 16 voltages or temperatures Excellent scalability in terms of functionality: The number of voltage and temperature acquisition channels can be expanded according to customer requirements, and the maximum voltage or temperature detection demand can be met by 128 channels.
