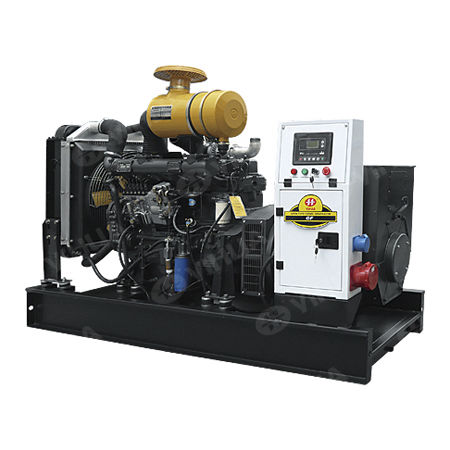

Diesel generator set WEIFANG Series
single-phasestationary50 Hz

Diesel generator set - WEIFANG Series - Fujian Yihua Electrical Machinery Co., Ltd. - single-phase / stationary / 50 Hz

Add to favorites

Compare this product

Characteristics

Motor type

diesel

Phase

single-phase

Portability

stationary

Frequency

50 Hz

Fuel System

direct fuel injection

Cooling system

air-cooled

Options and accessories

open type

Power in kVA

Max.: 200 kW
(271.92 hp)

Min.: 16 kW
(21.75 hp)

Rotational speed

1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)

Noise level

Max.: 75 dB

Min.: 63 dB

Description

WEIFANG Series Diesel Generator Sets Technical Data WEIFANG series generator sets adopt 2100,495,4100,4105,6105,6113 series engine produced by WEICHAI HUAFENG, WEIFANG TIANHE, WEIFANG HUAYUAN which devoted themselves to the research of diesel engines all the year round . They are all development , manufacturing, sales of specialized high-tech enterprises. The engines have more fine performances including reasonable price, low oil consumption, high reliability , easy to maintain etc. Power coverage from 16kw~200kw Model : GF: Open type &GFS: Soundproof /Silent/Supper silent type Engine:HUAFENG, HUAYUAN, KOFO, TIANHE ETC. Speed:1500/1800rpm Alternator : Stamford /Leroysomer /Marathon/ABB/YIHUA YHG IP &Insulation Class:IP22-23 &F/H Frequency :50/60HZ Controller ：Deepsea/Comap/Smartgen/DKG/Others ATS System: Smartgen/ABB/SOCOMIC /Others Silent&Supper silent Gen-set Sound level:63-75db(at 7m side)
