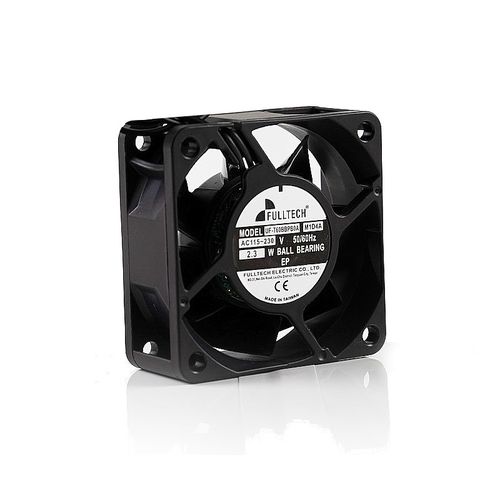

Axial electronic fan UFT60BBPB SERIEScooling
Add to favorites
Compare this product
Characteristics
- Configuration
- axial
- Function
- cooling
- Air flow
0.54 m³/min, 0.55 m³/min
(19.07 ft³/min, 19.423 ft³/min)
Description
Frame/Housing: - Aluminum die-casting
Impeller: - Plastic or steel
Bearing System: - Ball bearing
Motor: - Brushless DC motor
Protection: - Electronically-Protected
Insulation Resistance: - Above 10MΩ, DC500V
Dielectric withstand voltage: - AC 1,500V (50/60Hz) one minute
Life Expectancy: - Ball bearing: Over 50,000 hr. (at 40℃)
Safety Approval: - CE .
Rated Voltage - 115~230 V - -
Frequency - 50/60 Hz - -
Input Power - 2.0(115V) 2.3(230V) W - -
Rated Current - 0.039(115V) 0.025(230V) A - -
Locked Current - 0.092(115V) 0.044(230V) A - -
Speed - 3850(115V) 3950(230V) RPM - -
Maximum Air Flow - 0.0.54(115V) 0.55(230V) m3/min. - -
Maximum Air Flow - 19.1(115V) 19.4(230V) CFM - -
Maximum Pressure - 4.3(115V) 4.6(230V) mmH2O - -
Maximum Pressure - 0.0.17(115V) 0.18(230V) InchH2O - -
Noise - 31 dB - -
Weights - 0.06 kg
