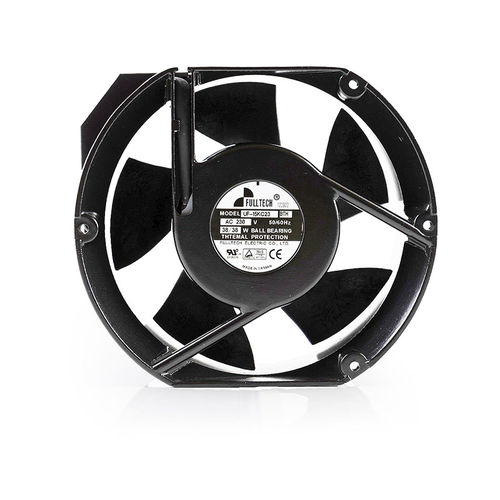

Axial electronic fan UF15KC SERIES

cooling

Frame/Housing: - Aluminum die-casting Impeller: - Plastic PBT PC,nylon or metal Bearing System: - Ball bearing or sleeve bearing Motor: - Shaded pole or capacitor start-run Connection: - Lead wire or termnal type Protection: - Impedance-Protected or Thermally-Protected Dielectric withstand voltage: - Above 10MΩ, DC500V Life Expectancy: - Ball bearing:Over 40,000 hr.(at 40°C) Sleeve bearing:Over 15,000 hr.(at 40°C) Safety Approval: - CUL, CE, TUV, either UL or ETL Rated Voltage - 115 V - 230 V - Frequency - 50/60 Hz - 50/60 Hz - Input Power - 39/38 W - 38/38 W - Rated Current - 0.38/0.34 A - 0.18/0.17 A - Locked Current - 0.75/0.76 A - 0.38/0.38 A - Speed - 2900/3400 RPM - 2900/3400 RPM - Maximum Air Flow - 6.8/8.3 m3/min. - 6.8/8.3 m3/min. - Maximum Air Flow - 240/293 CFM - 240/293 CFM - Maximum Pressure - 17/23 mmH2O - 17/23 mmH2O - Maximum Pressure - 0.67/0.9 InchH2O - 0.67/0.9 InchH2O - Noise - 55/60 dB - 55/60 dB - Weights - 1.05 kg - 1.05 kg
