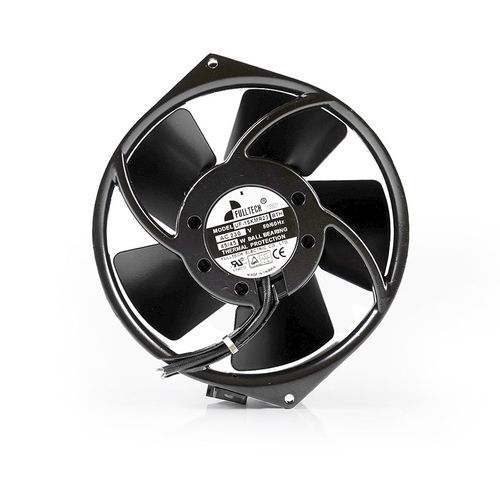

Axial electronic fan UF15KMR SERIES

cooling

Frame/Housing: - Aluminum die-casting Impeller: - Plastic PBT PC,nylon or metal Bearing System: - Ball bearing or sleeve bearing Motor: - Shaded pole or capacitor start-run Connection: - Lead wire or termnal type Protection: - Impedance-Protected or Thermally-Protected Dielectric withstand voltage: - Above 10MΩ, DC500V Life Expectancy: - Ball bearing:Over 40,000 hr.(at 40°C) Sleeve bearing:Over 15,000 hr.(at 40°C) Safety Approval: - CUL, CE, TUV, either UL or ETL Rated Voltage - 115 V - 230 V - Frequency - 50/60 Hz - 50/50/60 Hz - Input Power - 45/45 W - 43/45/45 W - Rated Current - 0.54/0.51 A - 0.3/0.27/0.25 A - Locked Current - 0.9/0.8 A - 0.5/0.44/0.38 A - Speed - 2750/3150 RPM - 2750/2750/3150 RPM - Maximum Air Flow - 6.4/7.2 m3/min. - 6.4/6.4/7.2 m3/min. - Maximum Air Flow - 225/255 CFM - 225/225/255 CFM - Maximum Pressure - 12.5/12.5 mmH2O - 12.5/12.5/12.5 mmH2O - Maximum Pressure - 0.5/0.5 InchH2O - 0.5/0.5/0.5 InchH2O - Noise - 58/61 dB - 58/58/61 dB - Weights - 1.1 kg - 1.1 kg
