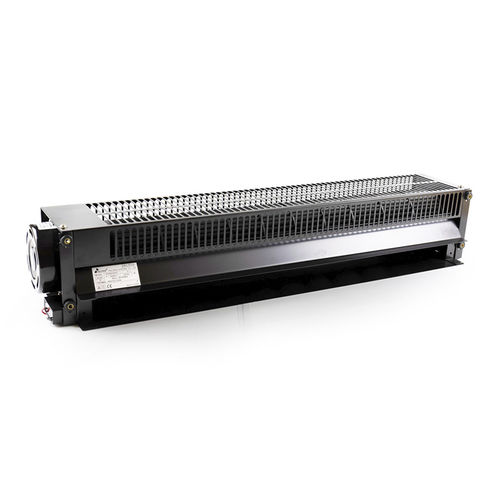

Wall fan UF9060 SERIESmixed-flowcoolingsteel
Add to favorites
Compare this product
Characteristics
- Type
- wall
- Configuration
- mixed-flow
- Function
- cooling
- Material
- steel, plastic
- Air flow
15 m³/min, 15.5 m³/min
(529.72 ft³/min, 547.377 ft³/min)
Description
Frame: - Steel with black painting
Impeller: - Plastic & Aluminum
Bearing System: - Ball bearing or sleeve bearing
Motor: - Capacitor start-run or Shaded pole
Protection: - Impedance-Protected or Thermally-Protected
Insulation Resistance: - Above 100MΩ,DC 500V.
Dielectric Withstand Voltage - AC1, 500V (50/60Hz) one minute
Safety Approval: - CE, TUV. (UF9029 has UL, CUL approval)
Rated Voltage - 120 V - 230 V -
Frequency - 50/60 Hz - 50/60 Hz -
Input Power - 130/160 W - 130/160 W -
Rated Current - 1/1.25 A - 0.55/0.7 A -
Locked Current - 1.4/1.4 A - 0.75/0.75 A -
Speed - 2150/2100 RPM - 2150/2100 RPM -
Maximum Air Flow - 15.5/15 m3/min. - 15.5/15 m3/min. -
Maximum Air Flow - 550/530 CFM - 550/530 CFM -
Maximum Pressure - 9/11 mmH2O - 9/11 mmH2O -
Maximum Pressure - 0.35/0.43 InchH2O - 0.35/0.43 InchH2O -
Noise - 55/54 dB - 55/54 dB -
Weights - 6 kg - 6 kg
