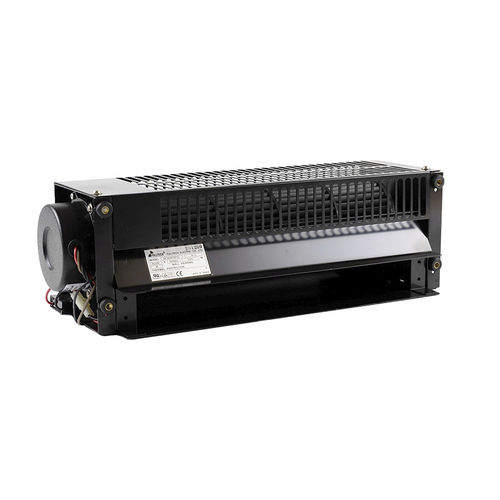

Wall fan UF9029 SERIES

mixed-flowcoolingsteel

Frame: - Steel with black painting Impeller: - Plastic & Aluminum Bearing System: - Ball bearing or sleeve bearing Motor: - Capacitor start-run or Shaded pole Protection: - Impedance-Protected or Thermally-Protected Insulation Resistance: - Above 100MΩ,DC 500V. Dielectric Withstand Voltage - AC1, 500V (50/60Hz) one minute Safety Approval: - CE, TUV. (UF9029 has UL, CUL approval) Rated Voltage - 120 V - 230 V - Frequency - 50/60 Hz - 50/60 Hz - Input Power - 33/31 W - 33/31 W - Rated Current - 0.28/0.27 A - 0.14/0.13 A - Locked Current - 0.4/0.4 A - 0.2/0.19 A - Speed - 1350/1560 RPM - 1350/1560 RPM - Maximum Air Flow - 4.5/5 m3/min. - 4.5/5 m3/min. - Maximum Air Flow - 159/177 CFM - 159/177 CFM - Maximum Pressure - 2.2/3.3 mmH2O - 2.2/3.3 mmH2O - Maximum Pressure - 0.09/0.13 InchH2O - 0.09/0.13 InchH2O - Noise - 43/46 dB - 43/46 dB - Weights - 3 kg - 3 kg
