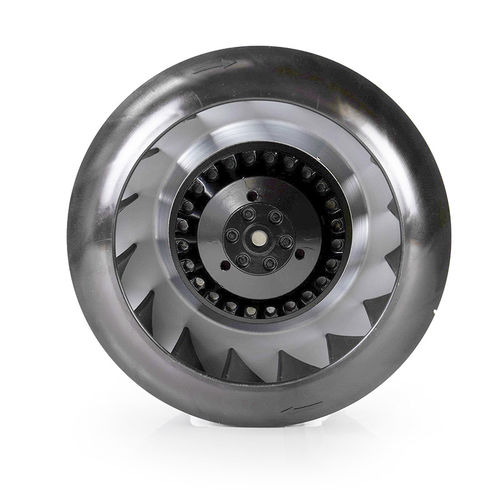

Centrifugal fan UF180APA SERIES

coolingACaluminum

Frame/Housing: - Aluminum die-casting Impeller: - Plastic or steel Bearing System: - Ball bearing Motor: - Shaded pole or capacitor start-run Protection: - Impedance-Protected or Thermally-Protected or Electronically-Protected Insulation Resistance: - Above 100MΩ, DC500V. Dielectric withstand voltage - AC 1,500V (50/60Hz) one minute Life Expectancy: - Ball bearing: Over 40,000 hr. (at 40℃) Safety Approval: - CUL, CE, TUV, either UL or ETL. Rated Voltage - 115 V - 230 V - Frequency - 50/60 Hz - 50/60 Hz - Input Power - 70/83 W - 70/81 W - Rated Current - 0.62/0.75 A - 0.3/0.35 A - Locked Current - 0.86/0.93 A - 0.41/0.44 A - Speed - 2300/2400 RPM - 2300/2400 RPM - Maximum Air Flow - 8.5/8.5 m3min. - 8.5/8.5 m3min. - Maximum Air Flow - 300/300 CFM - 300/300 CFM - Maximum Pressure - 25/34 mmH2O - 25/34 mmH2O - Maximum Pressure - 1/1.3 InchH2O - 1/1.3 InchH2O - Noise - 63/63 dB - 63/63 dB - Weights - 1.4 kg - 1.4 kg
