- Fulltech Electric CO., LTD.

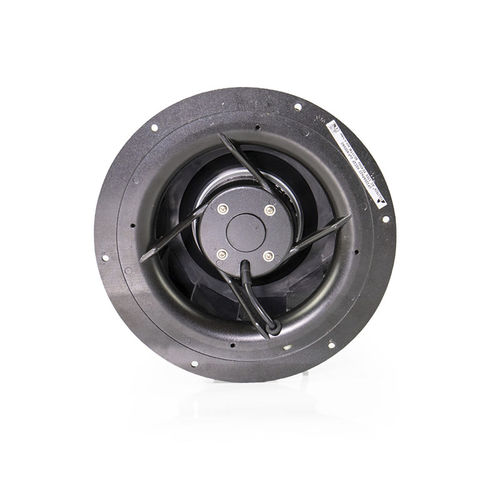

Centrifugal fan UF220APA-F SERIEScoolingACaluminum
Add to favorites
Compare this product
Characteristics
- Configuration
- centrifugal
- Function
- cooling
- Supply voltage
- AC
- Material
- aluminum, plastic
- Air flow
12 m³/min, 12.3 m³/min
(423.776 ft³/min, 434.37 ft³/min)
Description
Frame/Housing: - Aluminum die-casting
Impeller: - Plastic or steel
Bearing System: - Ball bearing
Motor: - Shaded pole or capacitor start-run
Protection: - Impedance-Protected or Thermally-Protected or Electronically-Protected
Insulation Resistance: - Above 100MΩ, DC500V.
Dielectric withstand voltage - AC 1,500V (50/60Hz) one minute
Life Expectancy: - Ball bearing: Over 40,000 hr. (at 40℃)
Safety Approval: - CUL, CE, TUV, either UL or ETL.
Rated Voltage - 115 V - 230 V -
Frequency - 50/60 Hz - 50/60 Hz -
Input Power - 90/117 W - 90/117 W -
Rated Current - 0.63/0.8 A - 0.35/0.39 A -
Locked Current - 0.88/0.93 A - 0.47/0.49 A -
Speed - 2500/2650 RPM - 2500/2650 RPM -
Maximum Air Flow - 12/12.3 m3/min. - 12/12.3 m3/min. -
Maximum Air Flow - 424/434 CFM - 424/434 CFM -
Maximum Pressure - 36/45 mmH2O - 36/45 mmH2O -
Maximum Pressure - 1.4/1.8 InchH2O - 1.4/1.8 InchH2O -
Noise - 64/65 dB - 64/65 dB -
Weights - 1.9 kg - 1.9 kg
