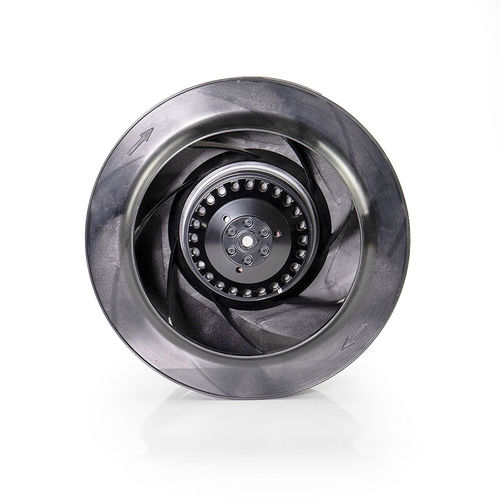

Centrifugal fan UF225(99)APA SERIES

coolingACaluminum

Frame/Housing: - Aluminum die-casting Impeller: - Plastic or steel Bearing System: - Ball bearing Motor: - Shaded pole or capacitor start-run Protection: - Impedance-Protected or Thermally-Protected or Electronically-Protected Insulation Resistance: - Above 100MΩ, DC500V. Dielectric withstand voltage - AC 1,500V (50/60Hz) one minute Life Expectancy: - Ball bearing: Over 40,000 hr. (at 40℃) Safety Approval: - CUL, CE, TUV, either UL or ETL. Rated Voltage - 115 V - 230 V - Frequency - 50/60 Hz - 50/60 Hz - Input Power - 128/160 W - 126/157 W - Rated Current - 1.16/1.41 A - 0.57/0.7 A - Locked Current - 2.22/2.3 A - 1.14/1.15 A - Speed - 2650/2950 RPM - 2650/2950 RPM - Maximum Air Flow - 20/22 m3/min. - 20/22 m3/min. - Maximum Air Flow - 700/770 CFM - 700/770 CFM - Maximum Pressure - 51/66 mmH2O - 51/66 mmH2O - Maximum Pressure - 2/2.6 InchH2O - 2/2.6 InchH2O - Noise - 69/71 dB - 69/71 dB - Weights - 2.3 kg - 2.3 kg
