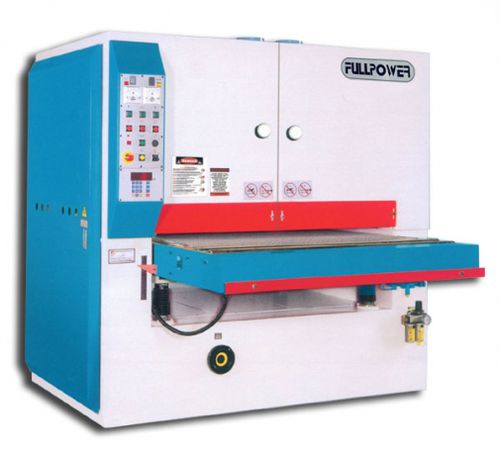

Wide-belt sander ATS series

electricfor woodspeed control

• The machine frame is manufactured of heavy duty steel plate to minimize vibration and deflection. • All parts of the machine can be easily obtained for maintenance and service. • Under the sanding aggregate and the pressurerollers, it’s the stable feed table. • Around the table, it runs an endless anti-slip conveyor belt. • The drive is powered by a strong feed motor and a variable speed control from 4 to 16 meters per minute. • The conveyor belt is adjustable with an auto tracking unit. • The sanding belt runs around the contact drum and the tension (or idle) roller. • The tracking of the sanding belt is achieved by an electric-eye. • MICRO-COMPUTER THICKNESS SETTING This machine employs a micro-computer for high accuracy and fast setting of thickness. • ANTI-KICKBACK FINGERS The anti-kickback fingers are provided in front of spiral cutter head for eliminating the danger of panel kickback. • AUTOMATIC TRACKING CONTROL OF CONVEYOR BELT Employs pneumatic system for automatic control of conveyor belt running track, that ensuring normal track at all times. • AUTOMATIC BRAKE Employs a disc type braking system. In case of insufficient air or power failure, the machine brakes instantly for safety. COMPREHENSIVE SAFETY GUARDS • Emergency stop switch. • Body activated emergency stop bar. • Sanding belt tracking limit control. • Automatic machine stop in event of power falilure. • Contact drum does not run in case of loose tensionof sanding blet. SPIRAL CUTTERHEAD • The precision machined spiral cutter head is mounted in front of sander head. • It gives heavy duty planing capacity, low noise urnning and extremely fine sutface of cut.
