Slide rail AFSH

aluminumfor extraction arms

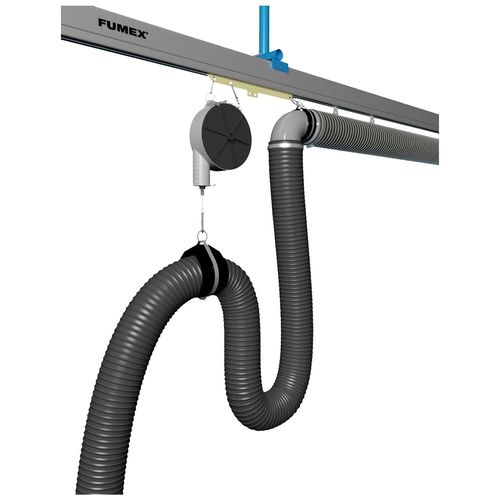

Exhaust rail for emergency vehicles with side-mounted exhaust pipes • Stable design consisting of a load-bearing aluminium profile with an integrated guide rail • The rail can be fitted with a 2% off set so that the trolley returns automatic to its starting position • As the vehicle approaches, the nozzle is mechanically or pneumatically manually connected to the exhaust pipe • When the vehicle drives away, the nozzle automatically disconnects and the hose is raised Standard • Profile rail made from aluminiumm • Ceiling hose made from EPDM for horizontal installation • Vertical hose made from compressible EPDM rubberised fabric • Can be connected to a separate fan or central extraction system
