Floor-standing fan C 600HThigh-temperatureradialextraction
Add to favorites
Compare this product
Characteristics
- Type
- floor-standing, high-temperature
- Configuration
- radial
- Function
- extraction
- Supply voltage
- 230VAC, 400 VAC
- Material
- stainless steel
- Applications
- laboratory, motor, industrial
- Other characteristics
- direct-drive
- Air flow
Min.: 100 m³/h
(3,531.467 ft³/h)Max.: 700 m³/h
(24,720.267 ft³/h)- Rotational speed
2,800 rpm
(17,593 rad.min-1)
Description

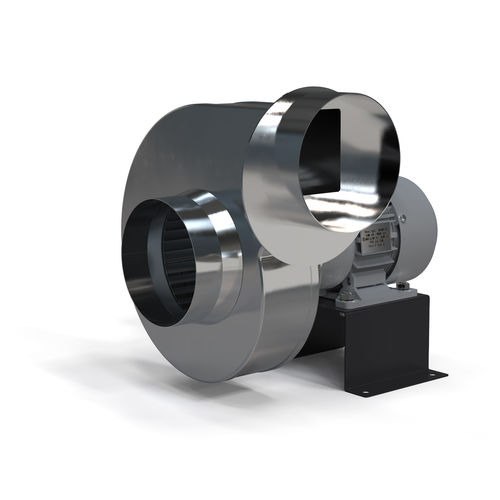

Stainless steel radial fan for high temperatures
FUMEX C 600HT – A radial fan for high temperatures which can be installed both indoors and outdoors, designed for industrial and laboratory environments. The fan is of direct-drive design with a motor thermistor. Both fan housing and impeller are made of stainless steel (EN 1.4301) for operating temperatures up to +200 °C.
The impeller has forward-curved blades for extracting non-explosive gases, fumes and lighter particles. The C 600HT is available in both 1- and 3-phase versions and is optimised for use in combination with the Fumex fume extraction and automatic control range.
The fan is supplied fully-equipped with a bracket for easy installation.
Catalogs
Product sheet C 600HT_EN
4 Pages
