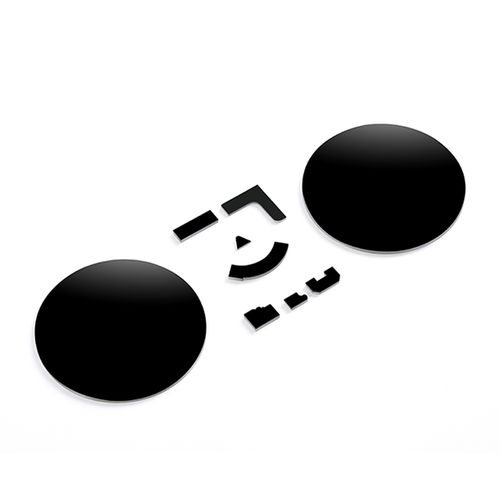

PCD blank PCD532

PCBN

Funik manufactures PCD blank with 75mm diameter. This is the largest diameter PCD cutting tool blank which are made in China. The performance and quality of this large-diameter cutting tool blank is equal in performance to the highest world-class standards. Advantages of Funik PCD Blank: ---With continuous impact resistance, outstanding thermal stability and superior wear resistance, it can ensure excellent workpiece quality and offer extremely long life of cutting tool. ---Its working conditions and the machining performance in the application can achieve an ideal balance, and it can meet the requirements of cutting or grinding and also be equipped with chipping resistance, wear resistance, discharge characteristic and grindability. ---Thickness scan of PCD layer. Funik offers a unique ultrasound scan that can map the thickness distribution of the PCD layer. The PCD scan identifies the 'North Point', which matches the 'North Point' laser-engraved on the disc, enabling users to optimize the cutting areas. Outer diameter: 63mm PCD layer: 0.5/1.0mm Total thickness (+/-0.05mm) : 1.6/2.0/3.2mm Grain size: 25μm Bond: Metal Feature: Excellent wear resistance, high thermal stability and high impact resistance through adopting mixed grains. Application: Wood, graphite, stone etc.
