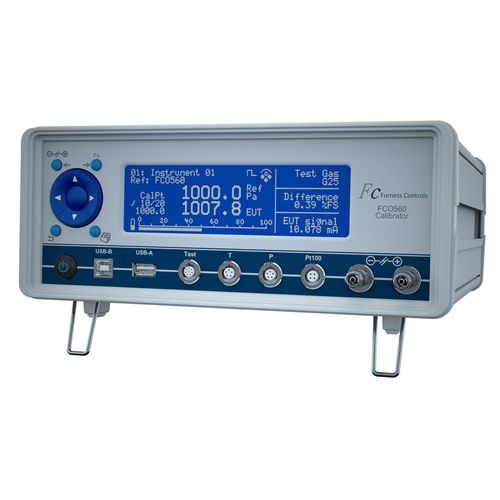

Pressure calibrator FCO560

flowfor flow metersfor pressure gauges

Differential pressure measurement down to 0.01 Pa. Automatic differential pressure generator Measure: Differential pressure, flow, temperature & pressure Data-logging facility with USB and RS232C output Detailed and easily-readable graphical display Used extensively in manufacturing as well as educational and research establishments around the world, the FCO560 is a multi-function low differential pressure instrument with two modes of operation. Calibration mode fulfils the calibration requirements for low differential pressure transmitters, transducers, pressure switches and flow devices. Measurement mode provides a versatile precision micro-manometer that may be combined with laminar flow elements or pitot tubes for measurement of velocity, volumetric flow and mass flow. Pressure & Flow Calibrator In calibration mode the FCO560's multiple sensor configurations allow different external references to be used quickly and simply. When combined with laminar flow elements, the FCO560 may be used as a flow calibrator covering flows from less than 1 ml/min to over 30000 l/min. When used for site calibrations, the FCO560 may be preconfigured with information for up to 99 different instruments to be calibrated. Additional features: Pressure control stability <0.003 % FS Simultaneous display of applied pressure/flow and EUT values Voltage and current inputs for EUT signal 4-20mA inputs for external temperature and pressure transducers PT100 temperature sensor input Internal absolute pressure sensor Battery powered for portable calibration
