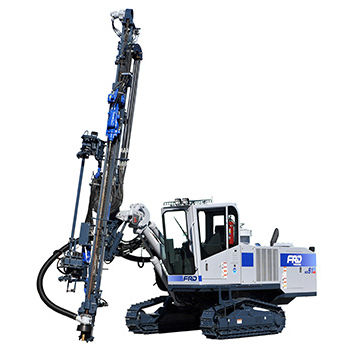

Multifunction drilling rig HCR910-DScrawlertophammerhydraulic
Add to favorites
Compare this product
Characteristics
- Applications
- multifunction
- Mobility
- crawler
- Drilling unit
- tophammer
- Other characteristics
- hydraulic
- Sector
- construction
- Drilling diameter
Max.: 89 mm
(4 in)Min.: 64 mm
(3 in)- Drilling depth
3.05 m
(10'00" )
Description
This is the integrated hydraulic crawler drill HCR series that proposes a new standard by including a new hydraulic drifter.
FRD has developed Dual Damper System first in the industry.
For maximum energy transfer, Active DDS minimizes return of shock waves by keeping the bit firmly against the rock at all times during drilling.
Active DDS minimizes percussion energy loss and, by optimizing the overall feed force required, produces straighter holes.
Operating Weight10,450 kg
Overall Length8,635 mm
Overall Width2,865 mm
Overall Height2,890 mm
Drifter ModelHD709
Emission CertifiedStage ⅢA
Free Air Delivery5.4 ㎥/min
Boom TypeFix
Rod Size32H, 38R, 45R, (38H)
Thread TypeT38, T45
Catalogs
HCR910-DS
8 Pages
