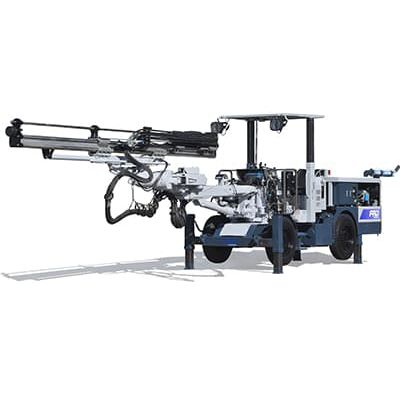

Tunnel jumbo drilling rig T1AM

Drilling equipment for tunneling projects. FRD also has fan cut drills for mining production. The most powerful unit of the single boom drill jumbos. Segment for small dimension tunnels. Drilling coverage (width x height) 5,800 mm x 5,890 mm Hydraulic drifter 1 x HD220 Boom 1 x JE333 Jr. Guide shell 1 x GH833 Feed length 3,400 mm (3.4m-STD) 2,190 - 3,400 mm (3.4m-EXT) 4,040 mm (4.0m-STDt) 2,190 - 4,000 mm (4.0m-EXT) Overall length 10,600 mm (3.4m-STD) 10,430 mm (3.4m-EXT) 10,970 mm (4.0m-STD) 10,780 mm (4.0m-EXT) Overall width 1,700 mm Min. turning radius (inside/outside) 2,900 mm/ 4,920 mm Mass 11,500 kg
