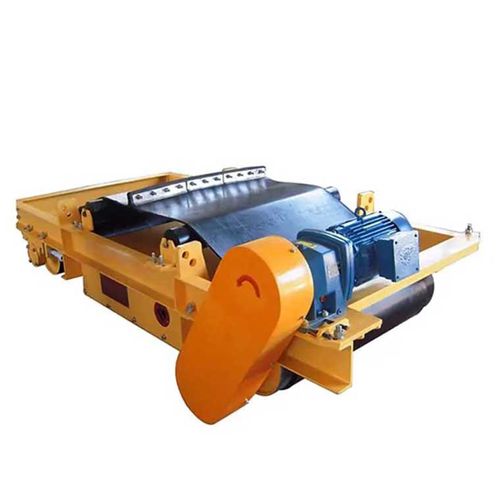

Suspended separator RCYD series

overband magneticpermanent magnetmetal

Permanent Overband Magnets are designed with a continuously running belt to tramp and automatically remove ferrous metal from conveyed material. Overband magnetic separator is designed to handle product streams with a high content of ferromagnetic particles. It is designed to capture in a quick and easy way valuable ferromagnetic particles from a product stream and at the same time the Overband magnetic plate with automatic cleaning. The powerful magnet block enclosed in this system is mounted in a heavy-duty steel frame. The magnet is traversed with a heavy-duty, vulcanized, cleated belt running on two pulleys and driven by either an electric or hydraulic motor. The entire system is designed for durability and is able to operate in the harshest environments. Structure They are used to recover magnetic particles from slag, household or industrial waste, etc. and are utilized to protect crushers, belt conveyors.) that subsequently treat the material. The tramp ferrous metal extracted from the conveyor is removed by a heavy-duty rubber belt into a skip or a collection bin at the side of the conveyor. The standard version of the Overband magnetic separator is fitted with strong permanent ferrite magnets. However, if you need stronger magnetic force, we recommend that the Overband magnetic separator is equipped with NdFeB magnets. We offer two types of magnetic Overband separators(permanent and electronic) to work with different types of applications. Advantage ·Ruggedly-Built For The Toughest Environments ·Can be custom designed to suit almost any application
