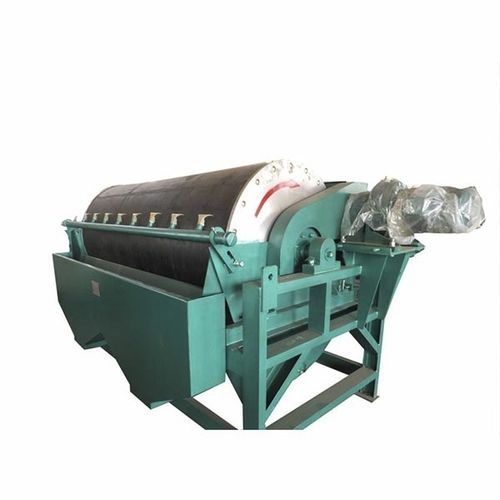

Magnetic separator CTB series

wet drumparticlefor ore

Wet Drum Magnetic Separator is a widely used magnetic separator for iron ore benefaction. Different versions of WDMS matched different applications. For example, proportion of magnetic particles, grain size, throughput and so on. Principle : Three different versions of EJET Wet drum magnetic separator systems(CTN type-counterrotation, CTS type-concurrent, CTB type-countercurrent) are all eccentrically. Our wet drum separators CTN type(counterrotation) achieve a high recovery rate of 99%. Grain sizes between 0.1mm-6mm Used in the processing of magnetite or ferrosilicon (FeSi) from sink/float separation and wet processing of fine grains Structure : The wet drum magnetic separator consists of a rotating magnetic drum disposed in a tank for receiving a flow slurry of a mixture of magnetic and non-magnetic particles . Slurry is fed to the tank and subsequently flows through the magnetic field generated by the drum. The ferromagnetics are attracted to the drum shell by the magnetic circuit and are rotated out of the slurry stream. The ferromagnetics discharge from the drum shell when rotated out of the magnetic field. Features: 1. Ejet helps our customers achieve their goals with more than 30 years of experience Ejet understands our customers’ diverse needs. Superior magnetic separation has proven to help our customers improve profitability and achieve high sustainable solutions. Three different operating modes matched our customer’s disposal: CTN type, CTS type, and CTB type.
