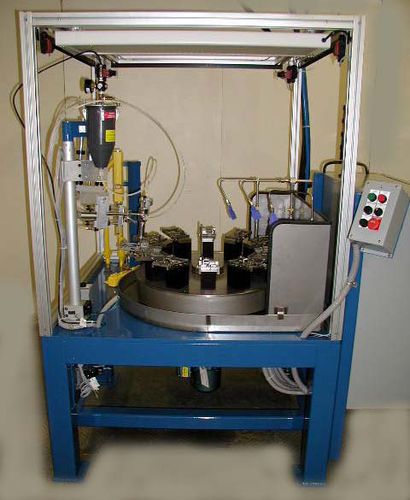

Automatic soldering station Rotary Index 100/120

Operator Station with PLC Interface makes part changes quick and easy while providing machine diagnostics for quick troubleshooting Heat manifolds are powder coated Gas Flowmeter and Manifold Manometer to verify process settings Heat, Air Cooling, and Water Cooling time adjustable through Operator Interface Needle Valves installed on all air and water cooling outlets Individual gascocks installed for each burner to allow individual flow adjustments or to turn burners on and off depending on part being processed Stainless Steel tubing used for burner pattern provides rigidity Guarding provides safety and process stability be shielding from air currents Polycarbonate windows allow for good visibility All guard doors hinged for easy maintenance All utility connections located together Color-coded piping for gas lines, air lines, and water lines Air dump valve with lockout for main air supply Hi/Lo Heat System conserves fuel by switching to low settings between cycles Isolation valves installed on incoming air and fuel source lines Stainless Steel Water Trough Access Door for heat system adjustments Safety pressure switches on heat system detect low gas pressure, high gas pressure, and low air pressure Proximity switches installed on extend and retract positions of all slides Flow Controls installed on all cylinders and slides Air dump valves installed on all slides to assist with setups and adjustments Paste tanks supplied with quick-release lid clamps Paste guns controlled through the PLC to allow paste adjustment through the PLC Manual paste purge pushbuttons supplied for each paste gun 1 spare paste gun supplied for each paste gun used
