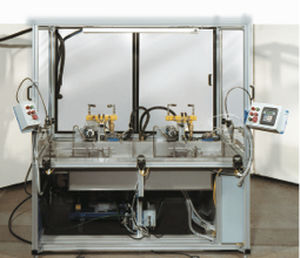

Semi-automatic brazing machine Braze Mate 150

Semi-automatic brazing machine - Braze Mate 150 - Fusion Incorporated
Semi-automatic brazing machine - Braze Mate 150 - Fusion Incorporated
Semi-automatic brazing machine - Braze Mate 150 - Fusion Incorporated - image - 2
Semi-automatic brazing machine - Braze Mate 150 - Fusion Incorporated - image - 3
Semi-automatic brazing machine - Braze Mate 150 - Fusion Incorporated - image - 4
Semi-automatic brazing machine - Braze Mate 150 - Fusion Incorporated - image - 5
Semi-automatic brazing machine - Braze Mate 150 - Fusion Incorporated - image - 6
Add to favorites
Compare this product


Characteristics

Operating mode
semi-automatic

Description

Additional BrazeMate 150/200 Standard Features: Heat slides include rotating motion to swing heat pattern into position, while keeping the burners up and away from the operator when retracted Overhead lighting keeps things visible for the operator Operator Station with PLC Interface makes part changes quick and easy while providing machine diagnostics for quick troubleshooting Quick-Disconnect manifolds require no tools to change making part changeovers quick and easy Heat manifolds are powder coated Fully adjustable manifold position makes machine configurable for most applications Gas Flowmeter and Manifold Manometer to verify process settings Heat, Air Cooling, and Water Cooling time adjustable through Operator Interface Needle Valves installed on all air and water cooling outlets Individual gascocks installed for each burner to allow individual flow adjustments or to turn burners on and off depending on part being processed Stainless Steel tubing used for burner pattern provides rigidity Guarding provides safety and process stability be shielding from air currents Polycarbonate windows allow for good visibility Banner Two-Hand safety switches assure operator is clear of machine All guard doors hinged for easy maintenance All utility connections located together Color-coded piping for gas lines, air lines, and water lines Air dump valve with lockout for main air supply Hi/Lo Heat System conserves fuel by switching to low settings between cycles Isolation valves installed on incoming air and fuel source lines Oscillating Heat Slide with adjustable stroke spreads heat throughout the joint area evenly Stainless Steel Water Trough
