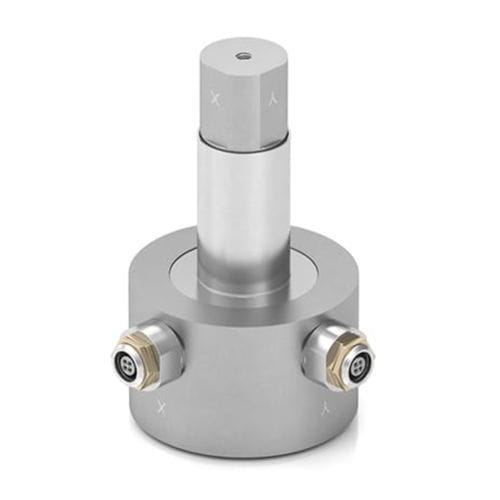

Compression load cell MBA400 series
canister2-axisstrain gauge

Compression load cell - MBA400 series - FUTEK Advanced Sensor Technology, Inc. - canister / 2-axis / strain gauge
Compression load cell - MBA400 series - FUTEK Advanced Sensor Technology, Inc. - canister / 2-axis / strain gauge
Compression load cell - MBA400 series - FUTEK Advanced Sensor Technology, Inc. - canister / 2-axis / strain gauge - image - 2
Add to favorites
Compare this product


Characteristics

Type
compression
Form
canister
Number of axes
2-axis
Technology
strain gauge
Other characteristics
stainless steel, compact, IP67
Rated force

222.4 N, 889.6 N

Rated load

20.44 kg, 90.72 kg
(45.06 lb, 200 lb)

Length

2 in

Height

3 in

Description

The Multi-Component Bi-Axial Load Arm offers an excellent solution for measuring Fx and Fy Loads. The MBA400 is made from robust 17-4 Stainless Steel, weighs only 16 oz, and offers a compact desing. The Multi-Component Bi-Axial Load Arm has high accuracy with a Nonlinearity of ±.1%. The MBA400 can be modified or customized to meet your requirements . Similar to our entire Multi-Component Load Cell product line this model is manufactured in USA and uses metal foil strain gauge technology •Measures Fx and Fy loads •Ideal for high speed planar force measurements for automation systems •Ideal for embedded automotive and aircraft control stick force measurement
