Rotary torque sensor QTA163

0-5 VIP40with TEDS

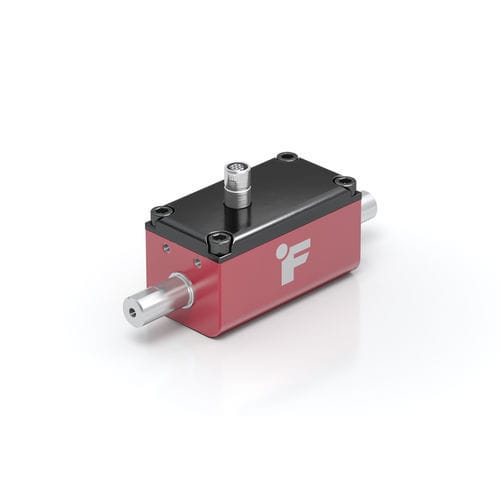

QTA163 , 1 N-m , Custom Micro Rotary Torque Sensor w/ Integrated TEDS, 6mm Male Shaft to Shaft , RoHS Compliant , Material - 17-4PH S.S. Shaft Aluminum Housing, 7 Pin Quick Disconnect Nano Receptacle The QTA163 rotary torque sensor is a state-of-the art miniature sensor that pushes technical boundaries in applications where torque measurements have previously not been possible. With a 0.7” x 0.7” (17mm x 17mm) cross section and 2.01” (53mm) length, the QTA 163 is the smallest rotary torque sensor offered by FUTEK as a catalogue product. It has a 0.2” (5mm) shaft that can measure torque in situations up to 150 rpm. • 17mm x 17mm Compact Design face for side by side assembly • Build-in TEDS • Light Weight Design • Low power consumption considering 1000 ohm bridge • High accuracy • Exceptional non-repeatability
