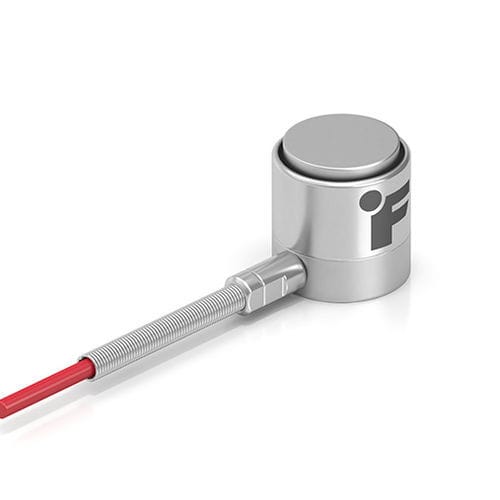

Compression load cell LCA300 series
canisterstrain gaugeminiature

compression load cell
compression load cell
compression load cell
Add to favorites
Compare this product


Characteristics

Type
compression
Form
canister
Technology
strain gauge
Other characteristics
compact, stainless steel, miniature
Rated force

8,896 N, 13,344 N, 22,240 N

Rated load

2,000 lb, 3,000 lb, 5,000 lb
(907.18 kg, 1,360.78 kg, 2,267.96 kg)

Length

0.6 in

Height

1 in

Description

FUTEK’s Column Load Cell (Miniature) offers an impressive compact design for high capacity applications. With a diameter of 0.62”, it is ideal for tight spaces. The LCA300 Column Load Cell (Miniature) is offered in 17-4PH Stainless Steel in 2,000 lbs to 5,000 lbs, with a raised surface radius to lower the possibility of off center loading. The Column Load Cell (Miniature) is designed to measure loads in compression. This model is manufactured in US, and similar to our entire Load Cell product line, uses metal foil strain gauge technology. Additional design features include the use of a strain relief providing much greater protection from the pull on the cable. •Low Deflection •Compression •Small profile for tight spaces •High Capacity Miniature Load Column/Canister Load Cell
