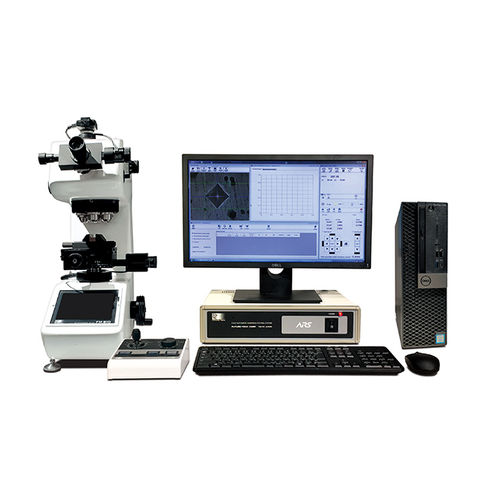

Vickers hardness tester ARS-F

benchtopautomatic

Controlled by high performanace software FT-ZERO ・By combining with Hardness Tester, stage control is automated in indent/ 　multi-pointmeasurement to reduce the dispersion caused by each operator. ・This system is very effective for large-scale rationalization 　and energy saving. Features ■High resolution camera（Common to each model ） ・Equipped with a 1.3M pixel high resolution digital camera. ■ Image processing software（Common to each model） ・Capability of reading unclear indents on un-mirror surface has been improved by more advanced image processing software. Various data output format and statistical processing（Common to each model ） ・For the measuring of carburizing / induction hardening, the se lected hardness case depth shall be displayed and recorded on the chart once the multiple measuring is completed. ・Multiple measuring data, Hardness chart, Case depth, Max. valu e, Min. value, Mean value, Dispersion, Standard deviation, OK-NG criteria, Conversion data etc… various data output shal l be available. ・Display and output of color profile picture linked with hardne ss values are standard function. ・Excel data transfer function. Test result shall be exported to the original report Form. FULLY-AUTOMATIC MEASURING SYSTEM ARS-F • - Auto-Focus, Auto-Reading, Auto-Stage Light-and-dark image processing protects this system agaist the influence of metals or damage. Automatic measurement can be done with high accurate repeatability exceeding any skilled technician.
