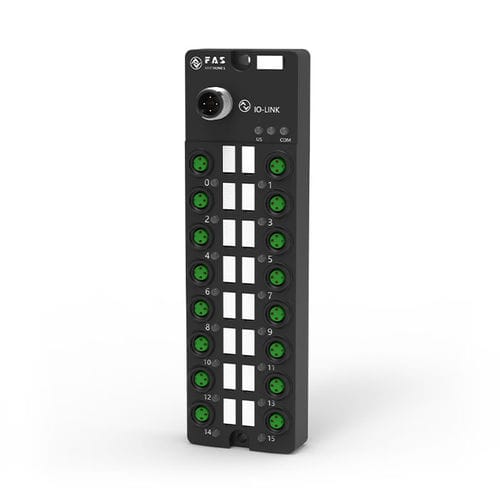

Digital IO module 00B516

IO-Link16 digital outputs16 digital inputs

M8 interface、IO-Link Hub、16DI、NPN • IO-Link protocol device • 16 ports and 16 signals • Protection level: IP 67 (when correctly connected) Function Parameter • IO-Link : Hub/Slave device • Type : 16×DI • Rated working voltage UB : 18...30 V DC • Power start-up indication light : Green LED indicator light • Connection: I/O port : M8，3 Pin，Female • Connection: IO-Link port : M12，A-coded，Male • Number of I/O ports : 16 • Input/output quantity : 16 pcs NPN input • Can be configured or not : Normally closed+normally open • lnput status indication light : Yellow LED indicator light • Total current UT : Maximum 800 mA • Degree of protection as per IEC 60529 : IP67（When connected correctly） • Operating temperature : -25...+70 ℃ • Storage temperature : -25...+85 °C • Weight : Around 150 g • Fastener : 2 pcs mounting hole • Dimensions (length × width × height) : 154×45.5×24.2 mm • Shell material : Plastic • lO-Link • lO-Link port number : 1×Device • Working mode : COM 2 • IO-Link tackled data length : 2 pcs input bytes • Indicator light communication : Green LED, pulse • Indicator light error : Red LED indicator light
