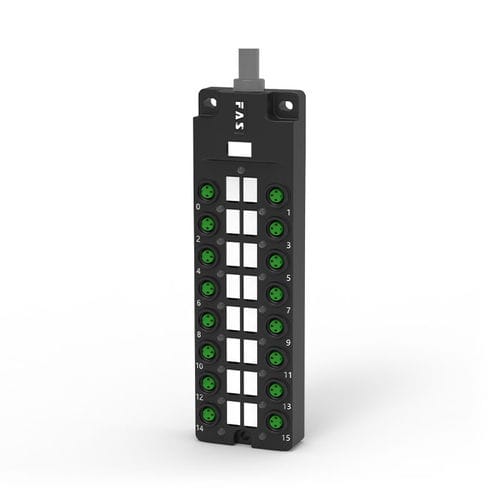

Mobile box 23NA61-XXX

compactmodularplastic

M8 Junction box、Single channel、NPN、16 port 、All-in-one、With LED、PVC non-flexible cable、Gray sheath > Customized, versatile and lightweight, can be used as an M8 or M12 splitter > Quickly assemble and disassemble for easy transport > Potential isolation possible via jumpers Function Parameter • Type : 16 way • Circuit : NPN • Rated working voltage UB : 10...30 V DC • Sensor connection : 3 Pin Female，M8×1 • Maximum current of a single port : 2A • Total current : 6A • Housing materia : PC • Degree of protection as perIEC60529 : IP 67（In correct connection） • Ambient temperature Ta : -25...+80 °C • Cable material/sheath color : PVC (Fixed installation) / Gray • Cable length : Customized (xxx=cable length, can be customized as needed when ordering. Example: 005=0.5m, 030=3m)
