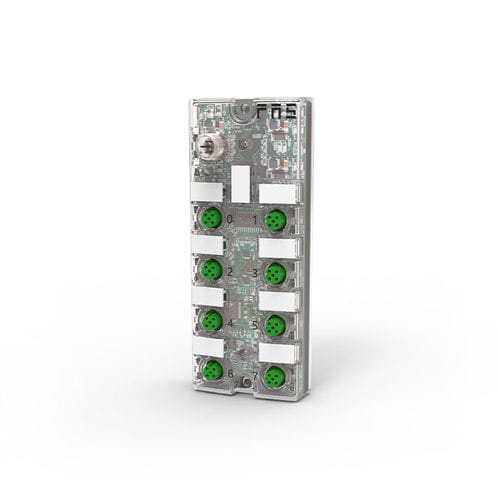

Digital IO module 00B934

IO-Link16 digital outputs16 digital inputs

M12 interface、IO-Link Hub、NPN、16DI/DO configurable module • IO-Link device • 8 ports and 16 signals • Input/output configurable • Protection level: IP 67 (when correctly connected) Function Parameter • IO-Link : Device • Illustrate : Single channel diagnostics • Type : 16×DI/DO NPN • Rated working voltage UB : 18...30 V • IO-Link RUN enegry indication light : Green LED indicator light • Power start-up indication light : Green LED indicator light • Connection: IO-Link : M12，A-coded，Male • Connection: I/O port : M12，A-coded，Female • Connection: UO : Via IO-Link interface • Connection: UA : Via IO-Link interface • Number of I/O ports : 8 • Input quantity : Maximum 16 • Output quantity : Maximum 16 • Configurable/parameterized : Yes • Single channel monitoring : Yes • Codable via IO-Link : No • Maximum load current，sensor/channel : 100 mA • Maximum load current actuator : 0.5 A • Port status indicator : Yellow/Red LED • Total current UT : < 1.4A • Total current UO : < 1.4A • Degree of protection as per IEC 60529 : IP67（When connected correctly） • Operating temperature : -25...+70 ℃ • Storage temperature : -25...+85 °C • Weight : - • Fastener : 2 pcs mounting hole • Dimensions (length × width × height) : 143×58×28.7 mm • Shell material : Modified plastic • Remark : - • lO-Link 1.1 • Max. cycle time : 4 ms • IO-Link tackled data length : 2 pcs input bytes/2 pcs outputs bytes • Indicator light communication : Green LED indicator light • Indicator light error : Red LED indicator light
