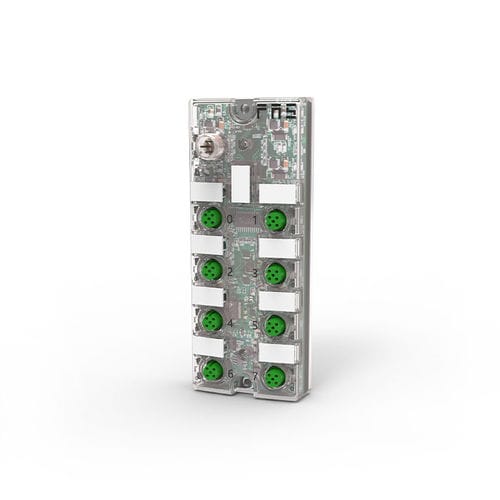

Digital IO module 00B931

IO-Link16 digital outputs16 digital inputs

M12 interface、IO-Link Hub、NPN、16DI • IO-Link device • 8 ports and 16 signals • Protection level: IP 67 (when correctly connected) Function Parameter • IO-Link : Device • Type : 16×DI NPN • Rated working voltage UB : 18...30 V • IO-Link RUN enegry indication light : Green LED indicator light • Power start-up indication light : Green LED indicator light • Connection: IO-Link : M12，A-coded，Male • Connection: I/O port : M12，A-coded，Female • Number of I/O ports : 8 • Input/output quantity : 16 pcs NPN input • Configurable/parameterized : No • Maximum load current，sensor/channel : 100 mA • Maximum load current actuator : - • Port status indicator : Yellow LED indicator light • Total current UT : < 1.2A • Degree of protection as per IEC 60529 : IP67（When connected correctly） • Operating temperature : -25...+70 ℃ • Storage temperature : -25...+85 °C • Weight : About 176 g • Fastener : 2 pcs mounting hole • Dimensions (length × width × height) : 143×58×28.7 mm • Shell material : Modified plastic • lO-Link • lO-Link port number : 1×Device • Max. cycle time : 3 ms • IO-Link tackled data length : 2 pcs input bytes • Indicator light communication : Green LED indicator light • Indicator light error : Red LED indicator light
