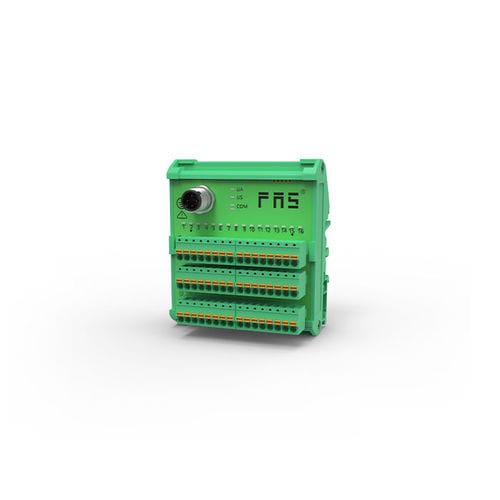

Digital I/O module 00BS15

IO-Link16 digital outputscurrent

IP20、IO-Link Hub、NPN、16DO、Terminal module • IO-Link device • Spring plate terminal interface • Suitable for inside the cabinet • Protection level: IP 20 Function Parameter • IO-Link : Device • Type : 16×DO NPN • Rated working voltage UB : 18...30 V DC • IO-Link RUN enegry indication light : Green LED indicator light • Power start-up indication light : Green LED indicator light • Connection: IO-Link : M12，A-coded，Male • Connection: I/O port : Spring terminal, plug-in type • Connection: UO : Spring terminal, plug-in type • Connection: UA : Spring terminal, plug-in type • Number of I/O ports : 16 • Input quantity : - • Output quantity : 16 low drive outputs (COM+) • Configurable/parameterized : No • Single channel monitoring : No • Maximum load current，sensor/channel : - • Maximum load current actuator/channel : 0.5 A • Port status indicator : Yellow LED indicator light • Total current UT : < 1.4 A • Total current UO : < 2 A • Degree of protection as per IEC 60529 : IP20 • Operating temperature : -25...+70 ℃ • Storage temperature : -25...+85 °C • Weight : - • Fastener : Top-hat rail mounted at the top of plastic housing • Dimensions (length × width × height) : 75.4×86.4×47.8 mm • lO-Link • lO-Link port number : 1× Device • Max. cycle time : 3 ms • IO-Link tackled data length : 2 pcs output bytes • Indicator light communication : Green LED, pulse • Indicator light error : Red LED indicator light
