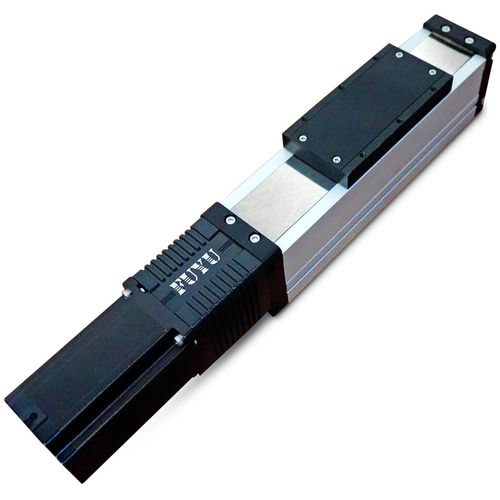

Ball bearing linear guide unit FSL60 Series

precisionprofiled railcompact

【Technical Feature】 FSL60 linear guide, fully sealed structure, body width 60mm, it is designed for dustproof usage in hard environment, avoid dust or miscellaneous debris fall into body structure to affect working, large stretch,small compression,hard object collision without deformation, oleic acid resistance, high temperature resistance, long service life. 【Range of Application】 It can be used in combination with single or multiple axes. It is easy to match the required workpieces in various industries and it becomes a simple and practical mechanical arm. It is mainly used in dust free workshops or special fields such as electronics and medical equipment, such as film, Discount, IC printing, CCD online testing, solder automation equipment. Certification: ISO, CE, FCC, RoHS Series: FSL60 Stroke Range: 50mm~1200mm Reapted Position Accuracy: 0.02mm Max Speed: 300mm/s Max Load: 40kg Ball Screw: G1610 Ball Screw Drive linear Positioning Tables linear Positioning Tables consist of Linear Guideway unit and ballscrew unit. For saving space, FUYU product combine the carriage of linear guideway and nut o f ballscrew to a integral Carriagenut. The carriagenut cooperate high rigidity to achieve the high rigidity and high accuracy in the minimal space, especially to saving time of installation. Ball Screw Module, Belt Driven Linear Guide, Positioning Stage, Motion Controller for Cartesian Robot. CE, FCC, RoHS, ISO9001 Certification. Huge Variety of Ready-to-Ship Products Quantity Discounts Starting at 10 pcs custom OEM Solutions Value-Added Services New source, New Price, New Chance.
