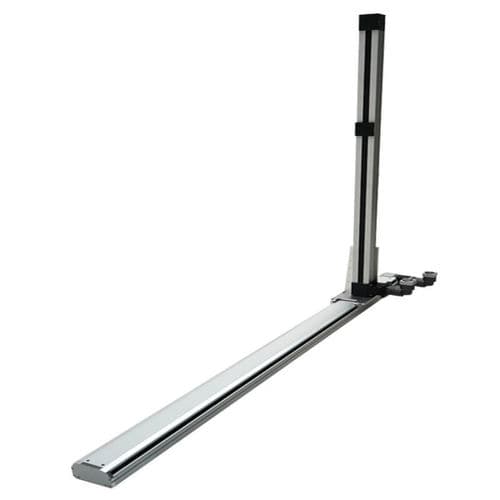

Belt-driven positioning system FBLFTB-XY

XYverticallinear

Belt Driven Actuator Linear Motion Vertical XY Stage 2 Axis Motorized Table The customer is a logistics automation research and development company. The linear positioning system is mainly used for parcel handling. The design running speed needs to meet the requirements of 1000mm/s, Y-axis end load 15kg, X-axis effective stroke 2000mm, vertical effective stroke 1500mm. FUYU linear guide system is certificated by CE and ISO9001 for industry standard. Series: FBL80FTB17IS-T Stroke Range: 4000mm Position Accuracy: 0.05mm Max Speed: 3000mm/s Max Load: 45kg FUYU Technology is a Linear Robotic Manufacturer and established in 2011. As a National High Tech Enterprise, 82 intellectual property rights have been authorized, involving 6 invention patents, utility models, appearance patents and 76 software copyrights. Multi-axis Positioning System can be composed of several linear modules for customized Stroke, Precision, Speed and Load Capacity. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc. As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 12 hours to suggest the best solution for the linear gantry robot. To get professional service, we have some questions for your project： 1. Which type of Linear Motion do you want, Belt Driven or Ball Screw? 2. How long stroke need: X=? Y=? Z=? 3. How much is the Load Capacity and Speed Range? 4. Do you need Motion Controller and other accessory together?
