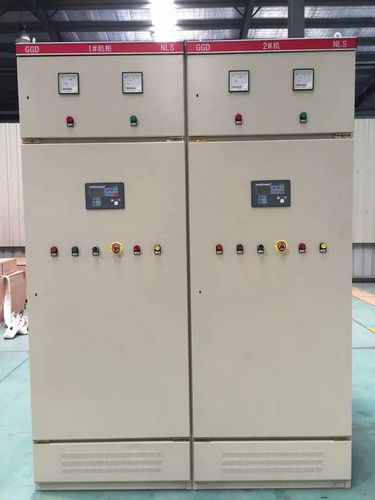

Automatic transfer switch

uprightfor generator sets4-pole

Brand: JET POWER 40A to 3200A with control system Product description: Automatic transfer switch, capacity from 40A to 3200A Can be use for all generating set Jet Power Automatic transfer switch system cabinet adopts high quality and reliable Automatic transfer switch. It’s to transfer between prime power and standby power. Jet power has many types of ATS cabinet 1. Standard ATS. It has 2 road power connection : Generator power and mains power. 2 road power are with electricaland mechanical interlocking. So it just can supply power to the load by 1 road at one time. The Standard ATS has few seconds without power. It depends on generator start time or ATS transfer time. 2. By pass Transfer Cabinet. It’s regular transfer test for ATS, and without power stop. 3. Instantaneous parallel transfer cabinet. It’s for strict time for power stop. The load is the most import. The power supply systems can realize seamless transfer. It’s usually used in hospital and data warehouse.
