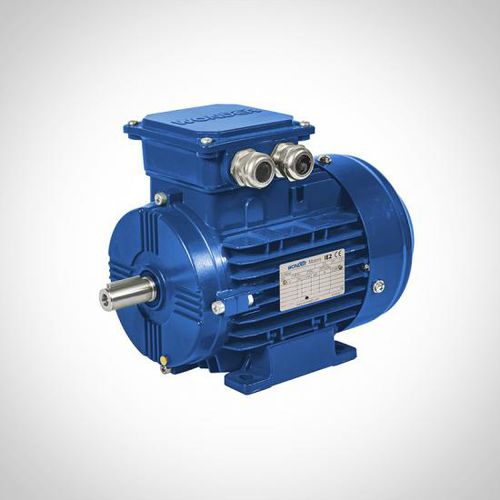

AC motor ZWEA series

asynchronous400 VIP55

PRODUCT DETAIL ZWEA Series motors are high efficiency aluminum motor with increased power. The efficiency indicators comply with the IE2 level. Wonder lines of die cast aluminum electric motors have the outstanding features of less weight, more output power, novel appearance, low noise, low power vibration, energy saving, compact structure, etc. For Wonder high efficiency motors, both solid and detachable feet are available. All WEA and ZWEA Series have removable feet which can be placed on different position of the motor frame. This design allows terminal box to be mounted on top, right or left and be rotated 360 degree without disassembling the complete motor, thus reducing modification time and reducing stocks. Main Tech Specifications: Frame Size: 80-180mm Output Power: 11-30kW Speed: 3000, 1500, 1000r/m Poles: 2, 4, 6 Protection Class: IP55 or above Insulation Class: F or above Cooling Method: IC411/IC416 Industries: Agriculture Aquaculture Warehouse Logistics Smelt Industry Steel Plants Textile Aggregate & Cement­­ Paper Milling Transportation Chemical & Metallurgy Applications: Pumps Motors Piston Pumps Motors Conveyor Belt Motors Blower Motors Paper Machine Motors Motors For Industrial Sewing Machine Grinding Motors Crusher Duty Motor Agitators Motors Mixer Motors Motors For Cooling Towers Rolling Mill Motors
