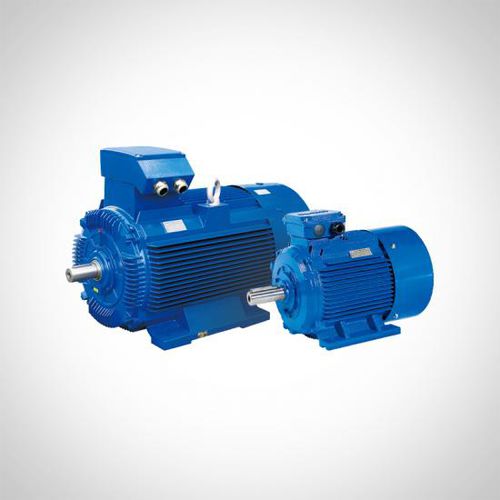

3-phase motor WDS seriesasynchronous400 VIP55
Add to favorites
Compare this product
Characteristics
- AC/DC
- 3-phase
- Type
- asynchronous
- Voltage
- 400 V
- Protection class
- IP55
- Configuration
- two-winding, cast iron
- Number of poles
- multipole
- Applications
- for water treatment applications, for the textile industry, for pump, industrial, for the chemical industry, for the mining industry, for conveyors, for fans
- Other characteristics
- multi-speed, low-voltage, high-torque, low-noise, precision
- Power
Min.: 0.05 kW
(0.068 hp)Max.: 82 kW
(111.489 hp)- Rotational speed
500 rpm, 750 rpm, 1,000 rpm, 1,500 rpm, 3,000 rpm
(3,141.59 rad.min-1, 4,712.39 rad.min-1, 6,283.19 rad.min-1, 9,424.78 rad.min-1, 18,849.56 rad.min-1)- Diameter
Min.: 150 mm
(5.91 in)Max.: 510 mm
(20.08 in)
Description
PRODUCT DETAIL
WDS Series are cast iron motors with multi-speed, which is realized by changing the numbers of poles. The motors can have two separated windings or Dahlander connection, which is suitable for various loads. WDS Series are suitable for fan drive with constant power, constant torque, depending on user's option of load and control circuit. Wonder WDS Series feature high torque, low noise, high performance, durable, excellent finishing, precision design, cost saving, etc.
Main Tech Specifications:
Frame Size: 71-250mm
Output Power: 0.05-82kW
Speed: 3000/1500, 1500/750, 1500/1000, 1000/750, 1000/500r/m
Poles: 2/4, 4/8, 4/6, 6/8, 6/12
Protection Class: IP55 or above
Insulation Class: F or above
Cooling Method: IC411/IC416
Industries:
Construction
Infrastructure
Metallurgy
Warehouse Logistics
Smelt Industry
Steel Plants
Water Treatment
Textile
Woodworking; Carpentry; Forest
Mining
Applications:
Fans Motors
Ventilation Motors
Blowers Motors
Machine Tools Motors
Hoists Motors
Conveyors Motors
Pumps Motors
