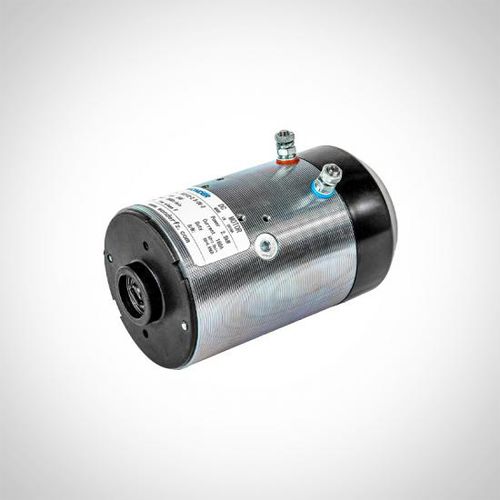

DC motor TSZ112

brushed24 V12 V

WONDER TSZ112 Series motor is Wound Field DC Motor, produced to meet the requirement of different applications, like hydraulic powerpack, hydraulic mini power, hydraulic system, hydraulic pump etc. Wound Field DC motor adopts magnetic pole and wounded rotor to be a completed package. With careful varnish, it gives motor good insulated quality and long-duration. High quality bearing and rotor balance process make the motor runs stably. Oil-proof on end side or shaft end can avoid rust. Sealing and oil-resist protect motor properly. Compared to permanent magnet brushed DC motor, Wound Field DC motor can realize big power in compact motor size. What is more, work duty can be flexibly designed to meet special operation requirements. Alternative painting plans are available for aggressive environment, standing for 500 hours salty spray test. Normally, Wound Field DC motor itself is only with one rotation, while WONDER has special design that can realize bi-rotation for Wound Field DC motor. Main Tech Specifications: - Frame Size: 112mm - Output Power: 1200-2200W - Speed: 2300-2600r/m - Protection Class: IP54 - Insulation Class: F - Voltage range: 12v, 24v, 48v - Work duty: S2, S3 - Rotation: CW, CCW or reversible optional - Parts: starter or thermal switch is option Industries: - Hydraulic System - Fluid System - Marine, Onshore And Offshore - Mining - Automobile - Energy - Agriculture & Aquaculture - Construction - Municipal - Infrastructure - Warehouse logistic Application: - Motor for Hydraulic Mini Power - Motor for Hydraulic Powerpack - Motor for Hydraulic Pumps - Motor for Hydraulic System - Motor for Fluid System
