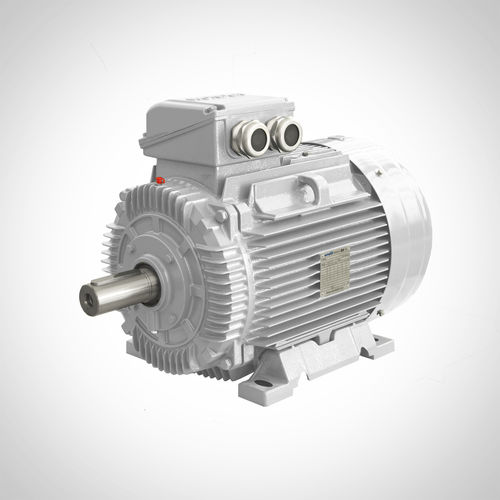

AC motor SWE-200L2-2-37KW

asynchronousIE3for industrial applications

Wonder SWE Series three phase asynchronous induction cast iron IE3 motors. Comparing to many other manufacturers, Wonder made complete new design for IE3 and IE2 motors instead of modifying the standard motors by enlarging the frame size or lengthening the lamination. Thus, our efforts result in good interchangeability among IE4, IE3, IE2 and IE1 versions. Furthermore, all the lines designed and produced by Wonder are equipped with perfect insulation system. Stators are well insulated with highest standard winding and insulation materials., such as slot liners, slot separators, phase separators, wedges, banding tapes, impregnating media, tapes and sleeving, etc. In addition to aging test, other test such as melting temperature, tensile strength, resistance to heat shock, cut through resistance etc. are also performed to ensure that the insulation system can withstand known operating conditions. The use of VFD and switching frequency are major driving forces to save energy. For VFD application, Wonder motors are fitted with class H copper wire, enhanced insulation materials, and insulated bearings or insulated end shield, which provides a good solution for new tech applications in all industry. For frequency between 25-50Hz, there is no need to install forced ventilator for Wonder motors. Main Tech Specifications: Frame Size: 80-355mm Output Power: 0.37-315kW Poles: 2, 4, 6, 8 Protection Class: IP55 or above Insulation Class: F or above Cooling Method: IC411/IC416 Industries: Water Treatment Air Handling Marine, Onshore and Offshore Agriculture & Aquaculture Woodworking Paper making Construction Steel Plants Petrochemical & Energy Warehouse Logistics
