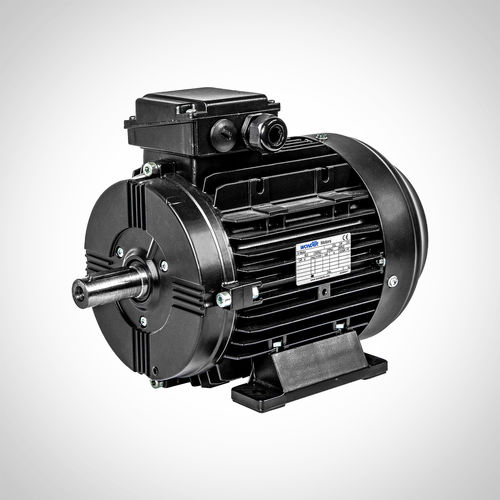

WONDER SSWEA Series 3 phase asynchronous induction IE4 motors, the motors with aluminum housing have outstanding advantages such as less weight, compact structure, splendent appearance, high efficiency, low noise, low vibration, easy maintenance, etc.
High resistance to corrosion and atmospheric attack (except chlorine, salt-laden or sulphuric acid).
In addition, WONDER has realized reduced operating temperatures of our products. Redesigned to provide improved air flow through all motor frames keeping low operational temperatures and assuring reliability and extended lifetime, the aerodynamic concept of the fan cover increases effective airflow, thus minimizing losses due to the recirculation of air between fan and fan cover. The impeller was designed to provide a tough structure and to reduce noise level. Motor terminal box and eyebolts was repositioned to allow better airflow.
The optimized cooling system also contributes to cooler bearing temperature, extends relubrication intervals and provides longer bearing lifetime and lower noise level fulfilling the most demanding health & safety regulations.
Main Tech Specifications:
Frame Size: 80-180mm
Output Power: 0.75-22kW
Poles: 2, 4, 6
Protection Class: IP55 or above
Insulation Class: F or above
Cooling Method: IC411/IC416
Industries:
Water Treatment
Textile
Air Handling
Chemical & Metallurgy
Aggregate & Cement
Food & Beverage & Pharmaceutical
Construction
Transportation
Applications:
Pumps Motors
Compressors Motors
Fans Motors
Gearbox Motors
Motors for Textile Machinery
Hydraulic Pressure Motors
Blower Motors
Conveyor Motors
Woodworker Motors
Crusher Motors
Crane Duty Motors
