AC/DC power supply PSR seriesregulatedsingle-phasetabletop
Add to favorites
Compare this product
Characteristics
- Type
- AC/DC
- Output
- regulated
- Network
- single-phase
- Mounting
- tabletop
- Certifications
- CE
- Input voltage
Min.: 100 V
Max.: 240 V
- Output voltage
24 V
- Current
2.5 A, 6 A, 12 A, 15 A, 30 A
- Power
600 W
Description

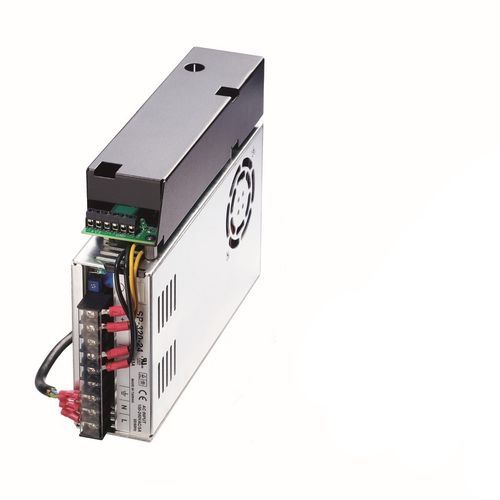

The PSR series power supplies are regulated DC power supplies capable of operating from 100-240 VAC input, 50/60 Hz. The PSR power supplies include a shunt regulator and blocking diode. They can be used with any controller/amplifier combination to provide a complete solution for single- or multi-axis applications. The PSR series are available in four models: PSR-12-24, PSR-6-48, PSR-30-24, and PSR-15-48.
The PS series power supplies are small low power supplies that come with a 2pin Molex Mini-Fit, Jr. connector to allow for mating directly to a DMC-40x0(ISCNTL),DMC-41x3(ISCNTL) or DMC-3x01x(ISCNTL) where the controller power is isolated from the amplifier power supply. It can also power the RIO Pocket PLC. The PS series is available in the PS-2.50-24 model.
