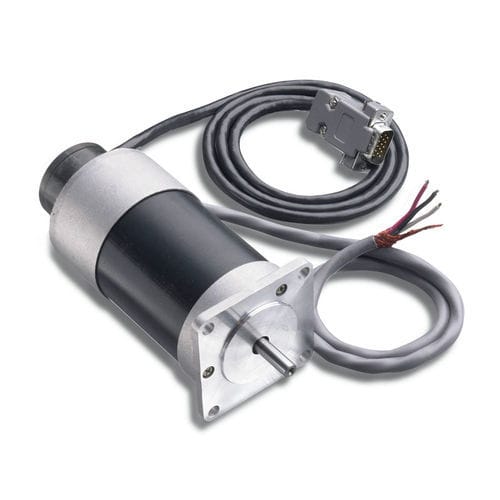

AC servomotor BLM-N23-50-1000-B

brushlessNEMA 234-pole

Galil's N23 brushless servo motor allows for quick and easy prototyping of servo systems. The motor includes an attached 1000 line encoder which provides position feedback to Galil controllers. Motors are shipped with connectors to mate to Galil controllers. Please specify the controller series at the end of the BLM part number (ie: BLM-N23-50-1000-B-model where model is 21x3, 40x0, 40x0-I200, 41x3, or 3x01x). • High performance servo motor for precise position and velocity control applications • Includes 1000 line differential quadrature encoder • Nema 23 standard mounting • Comes with mating 15 or 26pin High Density encoder connector and 4pin Mate-N-Lok power connector when ordered with controller • 4 pole motor (2 pole-pair) is configured with Galil sinusoidal drives with a BM (Brushless Modulo) value of 2000.
