Plug valve
with handwheelpneumatically-operatedelectrically-operated

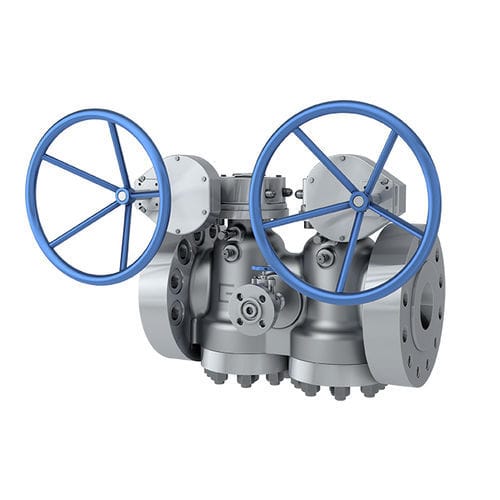

Plug valve - Galli & Cassina S.p.A. - with handwheel / pneumatically-operated / electrically-operated
Plug valve - Galli & Cassina S.p.A. - with handwheel / pneumatically-operated / electrically-operated
Add to favorites
Compare this product


Characteristics

Type
plug
Operation
with handwheel, pneumatically-operated, electrically-operated, hydraulically-operated
Function
isolation, bleed
Applications
pump
Other characteristics
ANSI, double-acting, single-acting, bypass, pneumatically-operated
DN

Max.: 20 in

Min.: 0.5 in

Pressure

Max.: 15,000 psi

Min.: 1,500 psi

Description

The DB&B PLUG VALVES provide the same PLUG VALVES features, with the addition of the “Double Isolation” feature, with a body bleed in between the two plugs. Valves “Face to Face” follows API6D, to guarantee interchangeability with valves in service. Main Applications: Critical bypass, vents, drains and blow-downs to atmosphere Compressors & Pumps Isolations Water/Slurry/Gas Injection system isolations Any critical “Full ΔP” operation Compressor isolation Pump isolation Meter isolation Water or gas injection system isolation Production Range: API6D ASME/ANSI 150 up to 2500 Lb API6A from API 2000 up to API 15000 Operator: Manual Gear or Wrench Operated; Electric Actuator, Pneumatic/Hydraulic actuator single or double acting; Gas Over Oil; Electro Hydraulic
