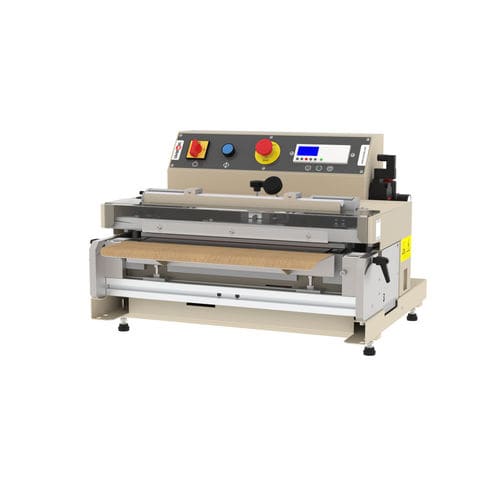

Fabric folding machine FOLD 1

electricautomatic

Linear folding machine electronic control with interchangeable bar, maximum working width mm 400 • Linear folding machines particularly suitable for folding leather parts used in the manufacture of wallets, bags and diaries • Able to perform also a creasing line with the hot plate • The upper bar, removable and replaceable, is provided in metal and rubber. ( The rubber version is suitable to folding hard leather, the metal version is suitable for all other types of materials) • Material thickness to fold: from 0.1 to 2 mm • Pressing time: adjustable from 0.5 to 10 seconds • Temperature upper plate: adjustable up to 100 ° C • Temperature lower plate: adjustable up to 100 ° C • Maximum folding width: mm 400 • Patented system for rapid access to the folding plates for cleaning and for replacement of the lower plate and upper plate • Patented system to adjust the alignment between the two plates of folding • Standard folding bar for hot creasing line, optional folding bar with out creasing line
