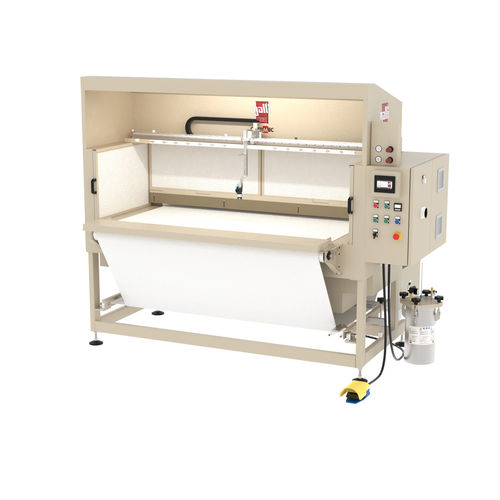

Automatic gluing machine TB1601-N.1 + UNA5

automatic gluing machine
automatic gluing machine
automatic gluing machine
automatic gluing machine
Add to favorites
Compare this product


Characteristics

Options
automatic

Description

Automatic spray gluing machine with conveyor belt and dryer unit, working width mm 1.540 The model TB1601-N+UNA5 is an automatic machine for applying water base adhesive by spraying. The maximum width of working is mm 1.540. The material is placed on a belt conveyor moves alternatively from right to left. The possibility to adjust the time and the advancement speed of the belt conveyor and also the gun speed, permits to obtain a good application of the adhesive.The settings of the different cycles are programmed by LCD touch screen. The model TB1601-N+UNA5 is equipped with a motor fan unit that blows warm air on the glued materials placed on the back side of the belt conveyor. The air temperature is adjustable and may arrive till 70°C. The suction unit permits also to reactivate the adhesive for having a better adhesion of the parts. The belt conveyor (very easy to change) is realized on polyester fiber with thickness of mm 5. The suction under the belt conveyor blocks the pieces during the adhesive spraying phase. The suction system, in addition to block the pieces on the conveyor belt, attracts the overspray between the panels placed on the left, right and back sides of the machine.
