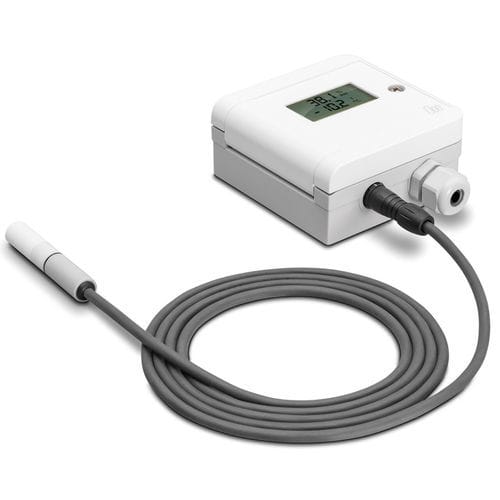

Relative humidity and temperature sensor 125°C | DZK

built-inUSBIP65

Humidity and temperature transmitter with many designs Features • Operating temp. up to 125 °C • Accuracy H: ±2 % RH • Accuracy T: ≤±0.35 K • On-site calibration • Easy to install Options • Display • USB port • hx converter • Plug-in connection • 4 probe lengths • Cable up to 25 m • Exchangeable • IP65 Easily customised modular design Excellent transmitter – high accuracy and easy to install. The probe and transmitter can be used in any combination. This makes them suitable for many installation situations and applications. The plug-in probes offer a major benefit: quick and easy exchange with no interruption in the measuring process. Some models are temperature-resistant up to 125 °C. All models can be supplied with an IP 65 safety category. Hx converter for calculating derived humidity variables The integrated hx processor uses the values for relative humidity and temperature to calculate the dew point, enthalpy, mixing ratio, absolute humidity or wet bulb temperature. Depending on customer preferences, any two of these values can be captured at two analogue outputs using standardized signals. USB Port The output variables can be freely configured via USB port. Easy to install The housing provides protection in accordance with IP 65. Only a single screw is required to close it securely.
