Compact, simple to use, ready to plug
Digital display
IP55
NEW : now compatible with level probes with float switches or conductive ones

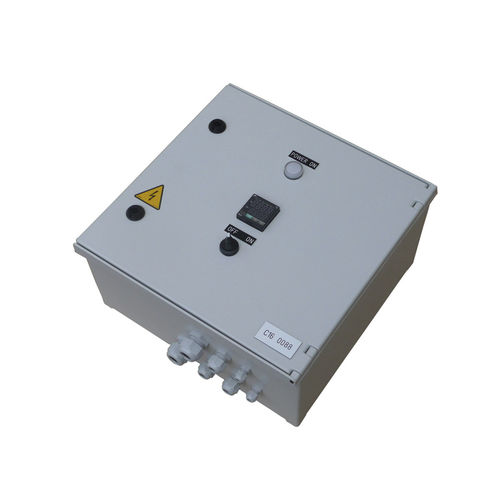

A simple solution for regulation: this PID digital display control box (with input PT100 3 wires) controls up to 7 kW 230V single-phase, 50/60 Hz
On-off switch with indicator light on the front.
Four cable-glands for : box supply, immersion heater, PT100 probe and level security.
Integrated ETS100 relay for use with a float switch (type MTSu) or a conductive level probe (type NS2).
Automatic reset of level security.
