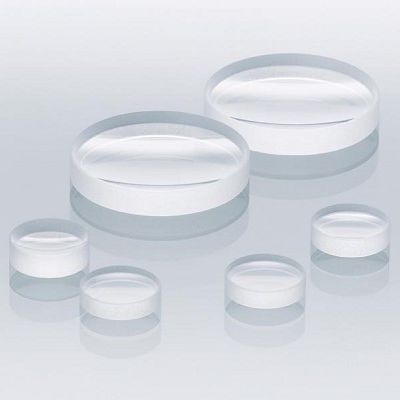

Plano-concave lens element L20 seriesBK7infraredUV
Add to favorites
Compare this product
Characteristics
- Geometry/curvature
- plano-concave
- Material
- BK7
- Optical characteristics
- infrared, UV
- Applications
- optical
- Other characteristics
- with anti-reflective coating
- Diameter
Min.: 4 mm
(0.16 in)Max.: 50 mm
(1.97 in)
Description
MATERIAL - N-BK7 GRADE A OPTICAL GLASS - -
DIAMETER TOLERANCE - + 0.0 / - 0.1mm
THICKNESS TOLERANCE - ± 0.2mm - -
SURFACE QUALITY - 40/20
CENTRATION - ≤ 3 arc MINS - -
FOCAL LENGTH - ± 1%
CUSTOM SIZES -
COATINGS - ANTI REFLECTION UV TO IR ON REQUEST
